Artikelnummer

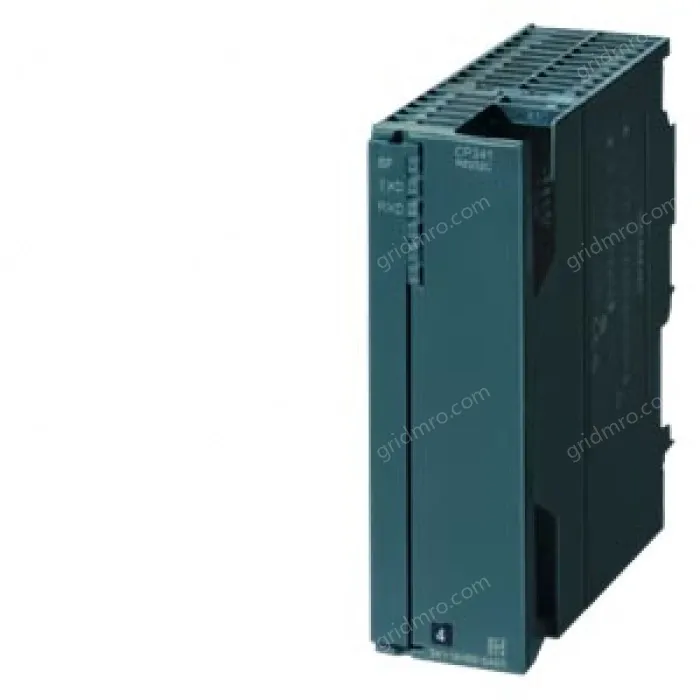

6ES7341-1CH02-0AE0

		SIMATIC S7-300, CP341 COMMUNICATION PROCESSOR WITH RS422/485 INTERFACE INCL. CONFIG. PACKAGE ON CD
Supply voltage
24 V DC		Yes
Input current
from backplane bus 5 V DC, max.		70 mA
from supply voltage L+, max.		100 mA
Power losses
Power loss, typ.		1.6 W
Power loss, max.		2.4 W
Interfaces
Number of interfaces		1; Isolated
Interface physics, RS 422/RS 485 (X.27)		Yes
Transmission rate, max.		115.2 kbit/s
Transmission rate, min.		0.3 kbit/s
Point-to-point
● Cable length, max.		1 200 m
● supported printers		Serial printers
● PtP		15-pin sub D socket
Integrated protocol driver
— 3964 (R)		Yes; not with RS 485
— ASCII		Yes
— RK512		Yes; not with RS 485
Telegram length, max.
— 3964 (R)		4 096 byte
— ASCII		4 096 byte
— RK 512		4 096 byte
Transmission speed, RS 422/485
— with 3964 (R) protocol, max.		115.2 kbit/s
— with ASCII protocol, max.		115.2 kbit/s
— with printer driver, max.,		115.2 kbit/s
— with RK 512 protocol, max.		115.2 kbit/s
Ambient conditions
Operating temperature
● Min.		0 °C
● max.		60 °C
Software
Block
● FB length in RAM, max.		6 100 byte; Data communication, sending and receiving
Connection method
Power supply		3 screw-type terminals: L+, M, GND
Dimensions
Width		40 mm
Height		125 mm
Depth		120 mm
Weights
Weight, approx.		300 g
last modified:		25.09.2014
