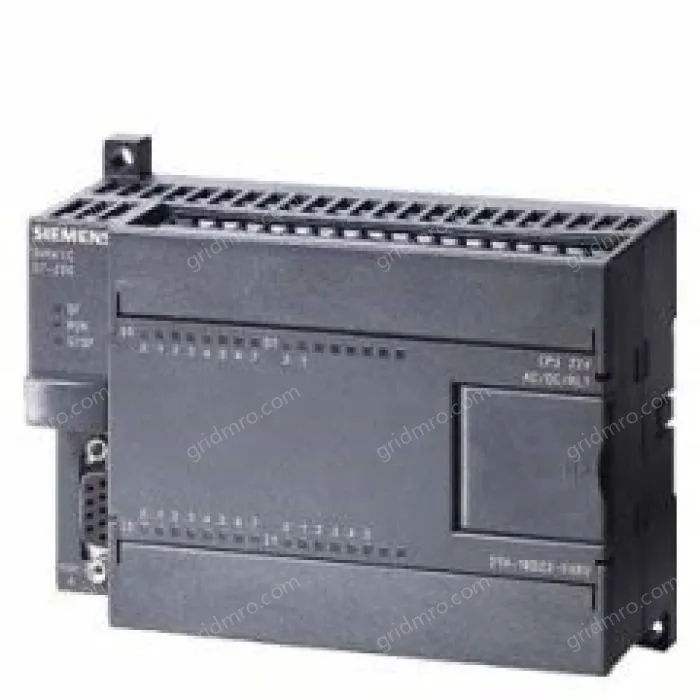

| Artikelnummer | 6ES7216-2AD23-0XB0 |
|  | Supply voltage24 V DCYespermissible range, lower limit (DC)20.4 Vpermissible range, upper limit (DC)28.8 VLoad voltage L+● Rated value (DC)24 V● permissible range, lower limit (DC)20.4 V● permissible range, upper limit (DC)28.8 VInput currentInrush current, max.10 A; at 28.8 Vfrom supply voltage L+, max.1 050 mA; 150 to 1050 mA output current for expansion modules (DC 5 V) 1000 mAEncoder supply24 V encoder supply● 24 VYes; permissible range: 15.4 to 28.8 V● short-circuit protectionYes; electronic at 400 mA● Output current, max.400 mAMemoryType of memoryotherNumber of memory modules (optional)1; pluggable memory module, content identical with integral EEPROM; can additionally store recipes, data logs and other filesData and program memory● Data memory, max.10 kbyte● Program memory, max.24 kbyte; 16 KB with active run-time editBackup● presentYes; Program: Entire program maintenance-free on integral EEPROM, programmable via CPU; data: Entire DB 1 loaded from PG/PC maintenance-free on integral EEPROM, current values of DB 1 in RAM, retentive memory bits, timers, counters, etc. maintenance-free via high-performance capacitor; optional battery for long-term bufferingBatteryBackup battery● Backup time, max.100 h; (min. 70 h at 40 °C); 200 days (typ.) with optional battery moduleCPU processing timesfor bit operations, max.0.22 µsCounters, timers and their retentivityS7 counter● Number256of which retentive with battery— can be setYes; via high-performance capacitor or battery— lower limit1— upper limit256Counting range— lower limit0— upper limit32 767S7 times● Number256of which retentive with battery— can be setYes; via high-performance capacitor or battery— upper limit64Time range— lower limit1 ms— upper limit54 min; 4 timers: 1 ms to 30 s; 16 timers: 10 ms to 5 min; 236 timers: 100 ms to 54 minData areas and their retentivityFlag● Number, max.32 byte● Retentivity availableYes; M 0.0 to M 31.7● of which retentive with battery0 to 255, via high-performance capacitor or battery, adjustable● of which retentive without battery0 to 112 in EEPROM, adjustableHardware configurationExpansion devices, max.7; Only expansion modules of the S7-22x series can be used. Due to the limited output current, the use of expansion modules may be limited.Connectable programming devices/PCsSIMATIC PG/PC, standard PCExpansion modules● Analog inputs/outputs, max.35; max. 28 inputs and 7 outputs (EM) or max. 0 inputs and 14 outputs (EM)● Digital inputs/outputs, max.148; max. 128 inputs and 120 outputs (CPU+EM)● AS-Interface inputs/outputs max.62; AS-Interface A/B slaves (CP 243-2)Digital inputsNumber of digital inputs24m/p-readingYes; optionally, per groupInput voltage● Rated value, DC24 V● for signal "0"0 to 5 V● for signal "1"min. 15 VInput current● for signal "1", typ.2.5 mAInput delay (for rated value of input voltage)for standard inputs— ParameterizableYes; all— at "0" to "1", min.0.2 ms— at "0" to "1", max.12.8 msfor interrupt inputs— ParameterizableYes; I 0.0 to I 0.3for counter/technological functions— ParameterizableYes; (E0.0 to E1.5) 30 kHzCable length● Cable length, shielded, max.500 m; Standard input: 500 m, high-speed counters: 50 m● Cable length unshielded, max.300 m; not for high-speed signalsDigital outputsNumber of digital outputs16; Transistorshort-circuit protectionNo; to be provided externallyLimitation of inductive shutdown voltage to1 WSwitching capacity of the outputs● with resistive load, max.0.75 A● on lamp load, max.5 WOutput voltage● for signal "1", min.20 V DCOutput current● for signal "1" rated value750 mA● for signal "0" residual current, max.10 µAOutput delay with resistive load● "0" to "1", max.15 µs; of the standard outputs, max. (Q0.2 to Q1.1) 2 µs; of the pulse outputs, max. (Q0.0 to Q0.1) 2 µs● "1" to "0", max.130 µs; of the standard outputs, max. (Q0.2 to Q1.1) 10 µs; of the pulse outputs, max. (Q0.0 to Q0.1) 10 µsParallel switching of 2 outputs● for increased powerYesSwitching frequency● of the pulse outputs, with resistive load, max.20 kHz; Q0.0 to Q0.1Aggregate current of outputs (per group)all mounting positions— up to 40 °C, max.6 Ahorizontal installation— up to 55 °C, max.6 ARelay outputs● Max. number of relay outputs, integrated0Cable length● Cable length, shielded, max.500 m● Cable length unshielded, max.150 mAnalog inputsNumber of analog potentiometers2; Analog potentiometer; resolution 8 bitEncoderConnectable encoders● 2-wire sensorYes— Permissible quiescent current (2-wire sensor), max.1 mA1st interfaceInterface typeIntegrated RS 485 interfacePhysicsRS 485Functionality● MPIYes; As MPI slave for data exchange with MPI masters (S7-300/S7-400 CPUs, OPs, TDs, Push Button Panels); S7-200-internal CPU/CPU communication is possible in the MPI network with restrictions; transmission rates: 19.2/187.5 kbit/s● PPIYes; with PPI protocol for program functions, HMI functions (TD 200, OP), S7-200-internal CPU/CPU communication ; transmission rates 9.6/19.2/187.5 kbit/s● Serial data exchangeYes; As freely programmable interface with interrupt facility for serial data exchange with third-party devices with ASCII protocol transfer rates: 1.2 / 2.4 / 4.8 / 9.6 / 19.2 / 38.4 / 57.6 / 115.2 kbit/s; the PC/PPI cable can also be used as RS232/RS485 converterMPI● Transmission rate, min.19.2 kbit/s● Transmission rate, max.187.5 kbit/s2nd interfaceInterface typeIntegrated RS 485 interfacePhysicsRS 485Functionality● MPIYes; As MPI slave for data exchange with MPI masters (S7-300/S7-400 CPUs, OPs, TDs, Push Button Panels); S7-200-internal CPU/CPU communication is possible in the MPI network with restrictions; transmission rates: 19.2/187.5 kbit/s● PPIYes; with PPI protocol for program functions, HMI functions (TD 200, OP), S7-200-internal CPU/CPU communication ; transmission rates 9.6/19.2/187.5 kbit/s● Serial data exchangeYes; As freely programmable interface with interrupt facility for serial data exchange with third-party devices with ASCII protocol transfer rates: 1.2 / 2.4 / 4.8 / 9.6 / 19.2 / 38.4 / 57.6 / 115.2 kbit/s; the PC/PPI cable can also be used as RS232/RS485 converterMPI● Transmission rate, min.19.2 kbit/s● Transmission rate, max.187.5 kbit/sIntegrated FunctionsNumber of counters6; High-speed counters (30 kHz each), 32 bits (incl. sign), can be used as up/down counters or for connecting 2 incremental encoders with 2 pulse trains offset by 90° (max. 20 kHz (A/B counters)); parameterizable enable and reset input; interrupt facilities (incl. call of subroutine with any content) when the setpoint is reached; reversal in counting direction, etc.Counter frequency (counter) max.30 kHzNumber of alarm inputs4; 4 rising edges and/or 4 falling edgesNumber of pulse outputs2; High-speed outputs, 20 kHz, with interrupt option; pulse-width and frequency modulation optionLimit frequency (pulse)20 kHzGalvanic isolationGalvanic isolation digital inputs● between the channelsYes● between the channels, in groups of13 and 11Galvanic isolation digital outputs● between the channelsYes; Optocoupler● between the channels, in groups of8 and 8Permissible potential differencebetween different circuits500 V DC between 24 V DC and 5 V DCDegree and class of protectionDegree of protection to EN 60529● IP20YesAmbient conditionsEnvironmental conditionsFor further environmental conditions, see "Automation System S7-200, System Manual"Operating temperature● horizontal installation, min.0 °C● horizontal installation, max.55 °C● vertical installation, min.0 °C● vertical installation, max.45 °CAir pressure● permissible range, min.860 hPa● permissible range, max.1 080 hPaRelative humidity● Operation, min.5 %● Operation, max.95 %; RH class 2 in accordance with IEC 1131-2Configurationprogramming● Command setBit logic instructions, compare instructions, timer instructions, counter instructions, clock instructions, transmissions instructions, table instructions, logic instructions, shift and rotate instructions, conversion instructions, program control instructions, interrupt and communications instructions, logic stack instructions, integer maths, floating-point math instructions, numerical functions● Program processingfree cycle (OB 1), interrupt-controller, time-controlled (1 to 255 ms)● Program organization1 OB, 1 DB, 1 SDB subroutines with/without parameter transfer● Number of subroutines, max.64Programming language— LADYes— FBDYes— STLYesKnow-how protection● User program protection/password protectionYes; 3-stage password protectionConnection methodPlug-in I/O terminalsYesDimensionsWidth196 mmHeight80 mmDepth62 mmWeightsWeight, approx.550 glast modified:25.09.2014 |
|
|
|
