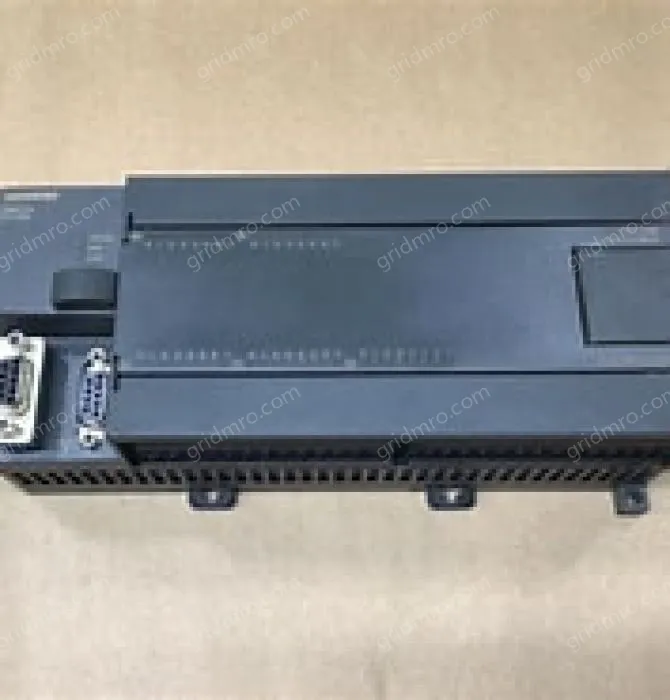

| Artikelnummer | 6ES7216-2BD23-0XB0 |
|  | Supply voltage120 V ACYes230 V ACYesLine frequency● permissible frequency range, upper limit63 HzLoad voltage L+● Rated value (DC)24 V● permissible range, lower limit (DC)5 V● permissible range, upper limit (DC)30 VLoad voltage L1● Rated value (AC)100 V● permissible range, lower limit (AC)5 V● permissible range, upper limit (AC)250 V● permissible frequency range, lower limit47 Hz● permissible frequency range, upper limit63 HzInput currentInrush current, max.20 Afrom supply voltage L1, max.320 mAEncoder supply24 V encoder supply● 24 VYes● short-circuit protectionYes● Output current, max.400 mAMemoryNumber of memory modules (optional)1Data and program memory● Data memory, max.10 kbyte● Program memory, max.24 kbyteBackup● presentYesBatteryBackup battery● Backup time, max.100 hCPU processing timesfor bit operations, max.0.22 µsCounters, timers and their retentivityS7 counter● Number256of which retentive with battery— can be setYes— lower limit1— upper limit256Counting range— lower limit0— upper limit32 767S7 times● Number256of which retentive with battery— can be setYes— upper limit64Time range— lower limit1 ms— upper limit54 minData areas and their retentivityFlag● Number, max.32 byte● Retentivity availableYesHardware configurationExpansion devices, max.7Expansion modules● Analog inputs/outputs, max.35● Digital inputs/outputs, max.148● AS-Interface inputs/outputs max.62Digital inputsNumber of digital inputs24m/p-readingYesInput voltage● Rated value, DC24 VInput current● for signal "1", typ.2.5 mAInput delay (for rated value of input voltage)for standard inputs— ParameterizableYes— at "0" to "1", min.0.2 ms— at "0" to "1", max.12.8 msfor interrupt inputs— ParameterizableYesfor counter/technological functions— ParameterizableYesCable length● Cable length, shielded, max.500 m● Cable length unshielded, max.300 mDigital outputsNumber of digital outputs16short-circuit protectionNoSwitching capacity of the outputs● with resistive load, max.2 A● on lamp load, max.200 WOutput current● for signal "1" rated value2 A● for signal "0" residual current, max.0 mAOutput delay with resistive load● "0" to "1", max.10 ms● "1" to "0", max.10 msParallel switching of 2 outputs● for increased powerNoSwitching frequency● of the pulse outputs, with resistive load, max.1 kHzAggregate current of outputs (per group)all mounting positions— up to 40 °C, max.10 Ahorizontal installation— up to 55 °C, max.10 ARelay outputs● Max. number of relay outputs, integrated16● Number of operating cycles, max.10 000 000Cable length● Cable length, shielded, max.500 m● Cable length unshielded, max.150 mAnalog inputsNumber of analog potentiometers2EncoderConnectable encoders● 2-wire sensorYes— Permissible quiescent current (2-wire sensor), max.1 mA1st interfaceFunctionality● MPIYes● PPIYes● Serial data exchangeYesMPI● Transmission rate, min.19.2 kbit/s● Transmission rate, max.187.5 kbit/s2nd interfaceFunctionality● MPIYes● PPIYes● Serial data exchangeYesMPI● Transmission rate, min.19.2 kbit/s● Transmission rate, max.187.5 kbit/sIntegrated FunctionsNumber of counters6Counter frequency (counter) max.30 kHzNumber of alarm inputs4Galvanic isolationGalvanic isolation digital inputs● between the channelsYesGalvanic isolation digital outputs● between the channelsYesDegree and class of protectionDegree of protection to EN 60529● IP20YesAmbient conditionsOperating temperature● horizontal installation, min.0 °C● horizontal installation, max.55 °C● vertical installation, min.0 °C● vertical installation, max.45 °CAir pressure● permissible range, min.860 hPa● permissible range, max.1 080 hPaRelative humidity● Operation, min.5 %● Operation, max.95 %Configurationprogramming● Number of subroutines, max.64Programming language— LADYes— FBDYes— STLYesKnow-how protection● User program protection/password protectionYesConnection methodPlug-in I/O terminalsYesDimensionsWidth196 mmHeight80 mmDepth62 mmWeightsWeight, approx.660 glast modified:16.09.2014 |
|
|
|
