Product Details

Model: 6ES7131-4BF50-0AA0
SKU: 10000003872301
Brand: SIEMENS
Weight: 2.00000kg

Specifications

DI Points 32points
DO Points 0points
AI Points 0points
AO Points 0points
Input Voltage 24VDC
Output Voltage N\/A
Input Response Time 0.1 to 4.3ms
Output Type N\/A
DI Channels 32channels
DO Channels 0channels
AI Channels 0channels
AO Channels 0channels
Input Signal Range 0 to 24VDC
Output Signal Range N\/A
Power Supply Type 24VDC

Description Reviews

Artikelnummer

6ES7131-4BF50-0AA0

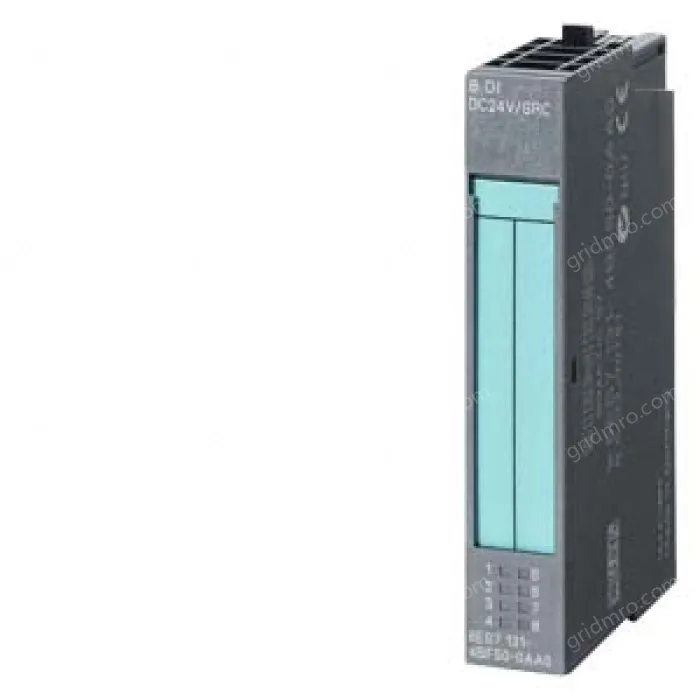

		SIMATIC DP, 1 ELECTRON. MODULE FOR ET 200S, 8 DI SOURCE INPUT 24V DC, 15 MM WIDTH, 1 PIECE PER PACKAGING UNIT
Supply voltage
24 V DC		Yes; From power module
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Reverse polarity protection		Yes
Input current
from supply voltage L+, max.		Dependent on encoder
Power losses
Power loss, typ.		1.2 W
Digital inputs
Number of digital inputs		8
Input characteristic curve in accordance with IEC 61131, type 1		Yes
Input voltage
● Type of input voltage		DC
● Rated value, DC		24 V
● for signal "0"		30 to -5 V
● for signal "1"		-15 to -30 V
Input current
● for signal "1", typ.		6 mA; at 24 V
Input delay (for rated value of input voltage)
for standard inputs
— Parameterizable		No
— at "0" to "1", min.		2 ms
— at "0" to "1", max.		4.5 ms
— at "1" to "0", min.		2 ms
— at "1" to "0", max.		4.5 ms
Cable length
● Cable length, shielded, max.		1 000 m
● Cable length unshielded, max.		600 m
Encoder
Connectable encoders
● 2-wire sensor		Yes
— Permissible quiescent current (2-wire sensor), max.		1.5 mA
Isochronous mode
Isochronous operation (application synchronized up to terminal)		Yes
Interrupts/diagnostics/status information
Diagnostic messages
● Diagnostic functions		No
Diagnostics indication LED
● Group error SF (red)		No
● Status indicator digital input (green)		Yes; per channel
Parameter
Remark		3 byte
Galvanic isolation
Galvanic isolation digital inputs
● between the channels		No
● between the channels and the backplane bus		Yes
Permissible potential difference
between different circuits		75 VDC / 60 VAC
Isolation
Isolation checked with		500 V DC
Dimensions
Width		15 mm
Height		81 mm
Depth		52 mm
Weights
Weight, approx.		35 g
last modified:		17.09.2014
