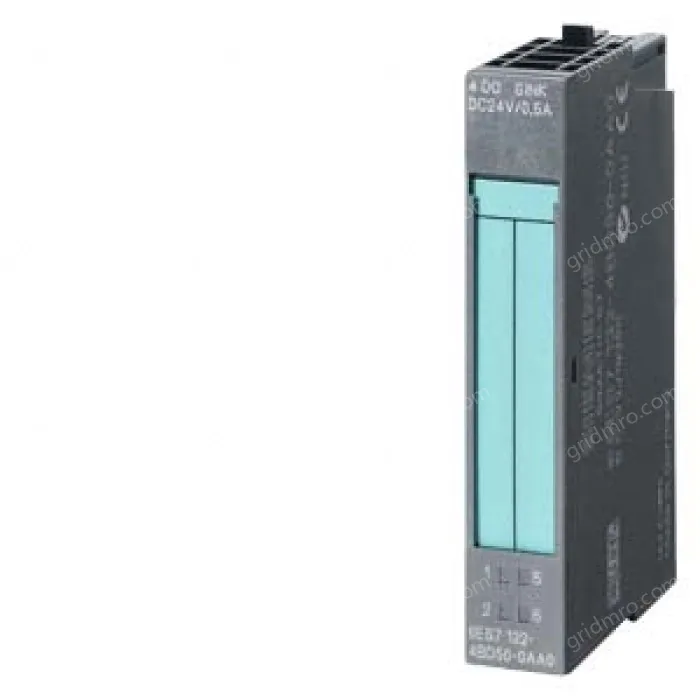

- | SIMATIC DP, 5 ELECTRON. MODULES FOR ET 200S, 4 DO HIGH FEATURE DC 24V/0.5A, 15 MM WIDTH DIAGNOSIS SHORT CIRCUIT, SF-LED 5 PIECES PER PACKAGING UNIT |
|
| Supply voltage |
| Reverse voltage protection | Yes; when using the same load voltage as on the power module |
| Load voltage L+ |
| Rated value (DC) | 24 V; From power module |
| Reverse polarity protection | Yes; polarity reversal can lead to the digital outputs being connected through |
| Input current |
| from load voltage L+ (without load), max. | 5 mA; Per channel |
| from backplane bus 3.3 V DC, max. | 10 mA |
| Address area |
| Address space per module |
| with packing | 4 bit |
| without packing | 1 byte |
| Digital outputs |
| Number of digital outputs | 4 |
| Short-circuit protection | Yes |
| Response threshold, typ. | 0.7 to 1.5 A |
| Limitation of inductive shutdown voltage to | -55 to -60 V, L+( ) |
| Controlling a digital input | Yes |
| Switching capacity of the outputs |
| Lamp load, max. | 5 W |
| Load resistance range |
| lower limit | 48 Ω |
| upper limit | 3400 Ω |
| Output voltage |
| for signal "1", min. | L+ (-1 V) |
| Output current |
| for signal "1" rated value | 0.5 A |
| for signal "1" permissible range for 0 to 60 °C, min. | 7 mA |
| for signal "1" permissible range for 0 to 60 °C, max. | 600 mA |
| for signal "0" residual current, max. | 0.3 mA |
| Output delay with resistive load |
| "0" to "1", max. | 100 µs |
| "1" to "0", max. | 300 µs |
| Parallel switching of 2 outputs |
| for uprating | No |
| for redundant control of a load | Yes; per module |
| Switching frequency |
| with resistive load, max. | 100 Hz |
| with inductive load, max. | 2 Hz |
| on lamp load, max. | 10 Hz |
| Total current of the outputs (per group) |
| all mounting positions |
| up to 60 °C, max. | 2 A |
| Cable length |
| Cable length, shielded, max. | 1000 m |
| Cable length unshielded, max. | 600 m |
| Isochronous mode |
| Isochronous mode (application synchronized up to terminal) | Yes |
| Interrupts/diagnostics/status information |
| Diagnostic messages |
| Diagnostic functions | Yes |
| Short-circuit | Yes; Module-wise |
| Diagnostics indication LED |
| Group error SF (red) | Yes; SF-LED (red) |
| Status indicator digital output (green) | Yes; Per channel |
| Galvanic isolation |
| Galvanic isolation digital outputs |
| between the channels | No |
| between the channels and the backplane bus | Yes |
| Isolation |
| Isolation tested with | 500 V DC |
| Dimensions |
| Width | 15 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weights |
| Weight, approx. | 40 g |
| Status | Jul 14, 2014 |
