Product Details

Model: 6ES7131-4EB00-0AB0
SKU: 10000003867601
Brand: SIEMENS
Weight: 2.00000kg

Specifications

DI Points 16channels
DO Points 0channels
AI Points 0channels
AO Points 0channels
Input Voltage 24VDC
Output Voltage N\/A
Input Response Time 3ms
Output Type N\/A
DI Channels 16channels
DO Channels 0channels
AI Channels 0channels
AO Channels 0channels
Input Signal Range 0-24VDC
Output Signal Range N\/A
Power Supply Type Backplane

Description Reviews

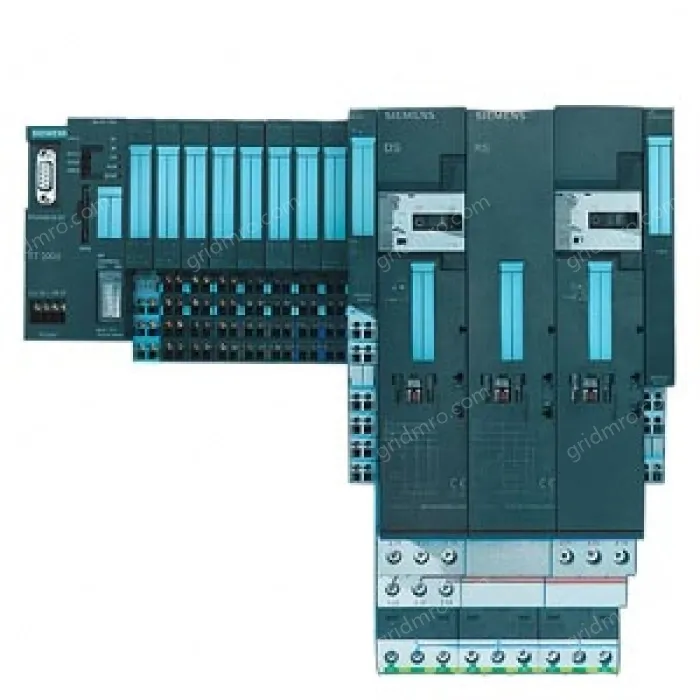

SIMATIC ET 200S with IM 151, CPU and 2 motor starters

SIMATIC DP, 5 ELECTRON. MODULES FOR ET 200S, 2 DI 120V AC 15 MM WIDTH 5 PIECES PER PACKAGING UNIT

Supply voltage

120 V AC

Yes; From power module

Input current

from backplane bus 3.3 V DC, max.

6 mA

from supply voltage L1, max.

Dependent on encoder

Power losses

Power loss, typ.

0.5 W

Address area

Address space per module

with packing

2 bit

without packing

1 byte

Digital inputs

Number of digital inputs

Input characteristic curve in accordance with IEC 61131, type 1

Yes

Input voltage

Type of input voltage

Rated value, AC

120 V

for signal "0"

0 to 20 V AC

for signal "1"

79 to 132 V AC

Frequency range

47 bis 63 Hz

Input current

for signal "1", typ.

3 mA; 3 to 9 mA

Input delay (for rated value of input voltage)

for standard inputs

at "0" to "1", min.

15 ms

at "1" to "0", min.

25 ms

Cable length

Cable length, shielded, max.

1000 m

Cable length unshielded, max.

600 m

Encoder

Connectable encoders

2-wire sensor

Permissible quiescent current (2-wire sensor), max.

1 mA

Isochronous mode

Isochronous operation (application synchronized up to terminal)

Interrupts/diagnostics/status information

Diagnostic messages

Diagnostic functions

Short circuit

Diagnostics indication LED

Status indicator digital input (green)

Yes; per channel

Parameter

Remark

3 byte

Galvanic isolation

Galvanic isolation digital inputs

between the channels

between the channels and the backplane bus

Yes

Permissible potential difference

between M internally and the inputs

1500 V AC

Isolation

Isolation checked with

2500 V DC

Dimensions

Width

15 mm

Height

81 mm

Depth

52 mm

Weights

Weight, approx.

31 g

Status

Jun 16, 2014
